Host parameters
Supporting power: 170F / P / R176 / KM178FS
Rated power: 4.0KW
Rated speed: 1800 / 2600r / min
Main clutch type: Tighten wheel type
Main drive: V-belt

And rotary tiller supporting parameters
Overall dimensions (length X width X height): 925> <624x1235mm
Structural quality: 80kg
Width: 107 cm
Tillage depth: ≥ 10cm
Operating speed: ≥0.16m / s
Productivity per meter width: ≥0.10hm / (h.m)
Main fuel consumption rate: ≤ 12kg / hm
Connection: direct connection
Drive mode: drive shaft drive
Knife roll: design speed low 90r.p.m high 120r.p.m.
Maximum swivel radius: 155
Total installed number of knives: 24
Rotary knife type: GB165

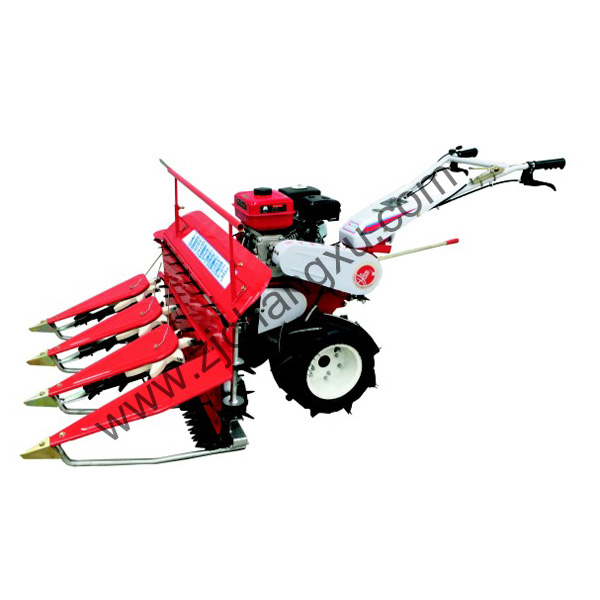

And sun cutting machine supporting parameters
Dimensions (L x W x H): 2100x1400x1000mm
Weight: 148kg
Connection: direct connection
Drive mode: chain drive
Working speed: ≥0.5m / s
Cutting table form: vertical
Laying g: horizontal
Operating width: 100cm
Number of rows: 3 rows
Recommended height: ≤ 150mm
Laying angle: 90 ° ± 20 °
